Radeon RX 9070 XT vs RX 9060 XT: Real-World Performance, Benchmarks, and Thermals
stylus_note
Swtek Editorial
schedule
8 Min Read
Related Topics:
A Clear Performance Divide at 1440p
Introduction
Mid-to-high-end GPUs live in a tricky space. On paper, the Radeon RX 9060 XT and RX 9070 XT may look closely related, but in practice the performance gap between them is anything but subtle.
This article takes a grounded, data-driven look at how these two GPUs behave in both synthetic benchmarks and real games, using identical system conditions and repeatable tests. Rather than chasing peak numbers, the focus here is on consistency, scaling, and what you actually feel while playing.
"The RX 9070 XT isn't just faster — it behaves like a different class of GPU entirely."
If you're deciding between these two cards, the results below make the choice much clearer.
Test Setup & Methodology
Both GPUs were tested in the same system configuration, with only the graphics card swapped between runs. Benchmarks were repeated multiple times to ensure consistency, and averages are reported where applicable.
Test System Configuration
- CPU: Intel Core i7-14700K (20 cores)
- Memory: 32 GB DDR5
- GPU: Radeon RX 9070 XT / RX 9060 XT (tested separately)
- VRAM: 16 GB GDDR6 (9070 XT), 8 GB GDDR6 (9060 XT)
- Bus Interface: PCI Express 5.0 ×16
- OS: Windows 11 (fully updated)
- Drivers: Latest stable AMD Radeon driver
- Resolution: 2560×1440 (1440p)
- Settings: Ultra / maximum presets
- Monitoring: HWiNFO for clocks, power, and thermals
"All tests were run on an Intel Core i7-14700K system with 32 GB DDR5, ensuring the GPU — not the platform — was the limiting factor."
This approach keeps the results representative of how these GPUs behave in real systems, not idealized lab scenarios.

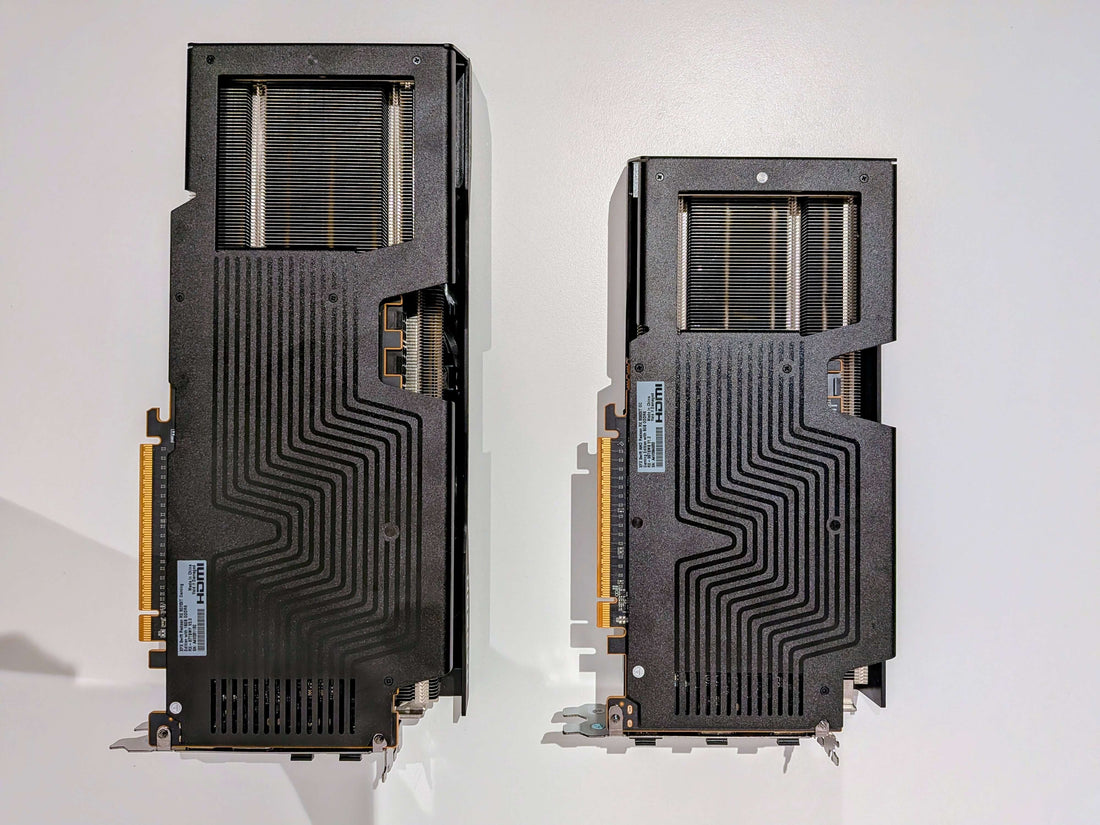

Hardware Overview: RX 9070 XT vs RX 9060 XT
While the two cards share a common lineage, their configurations tell very different stories. The RX 9070 XT carries a noticeably larger cooler, higher power limits, and more aggressive sustained clocks.
The RX 9060 XT, by contrast, targets efficiency and compactness. That makes it easier to cool and integrate — but also places a firm ceiling on performance.
These design decisions directly influence not just peak numbers, but frame pacing, minimum FPS, and how the GPU behaves under prolonged load.
Synthetic Benchmarks (3DMark)
Synthetic benchmarks don't tell the whole story, but they're excellent at highlighting raw compute performance, architectural scaling, and sustained behavior under controlled workloads.
We used multiple 3DMark tests to capture both peak performance and stability, with each result backed by repeated runs and telemetry logging.
3DMark Time Spy — Graphics Score (avg of 3 runs)
Higher is better. Bars normalized to the fastest GPU in this chart.
RX 9060 XT
16,338
RX 9070 XT
28,494
Three-run consistency was extremely tight on both GPUs, with Time Spy Graphics Score variance well under 1%.
3DMark Steel Nomad — Stress Test (Frame Rate Stability)
Higher is better. Bars normalized to the higher stability result in this chart.
RX 9060 XT
98.6%
RX 9070 XT
98.4%
Both GPUs passed comfortably and showed excellent sustained consistency under a modern stress workload.
HWiNFO — Peak Telemetry Summary
Extracted from eight HWiNFO logs: three Time Spy runs per GPU (averaged), plus one Steel Nomad stress test per GPU (peak values). Temperatures shown in °C with °F in parentheses.
| Test | GPU | Peak GPU Temp | Peak Hotspot | Peak TBP | Peak Fan |
|---|---|---|---|---|---|
| Time Spy (avg of 3) | RX 9060 XT | 53.3 °C (128.0 °F) | 81.8 °C (179.2 °F) | 182.1 W | 1,614 RPM |
| Time Spy (avg of 3) | RX 9070 XT | 56.0 °C (132.8 °F) | 78.6 °C (173.5 °F) | 304.6 W | 1,508 RPM |
| Steel Nomad Stress | RX 9060 XT | 58.0 °C (136.4 °F) | 85.1 °C (185.2 °F) | 182.4 W | 1,600 RPM |
| Steel Nomad Stress | RX 9070 XT | 61.0 °C (141.8 °F) | 82.9 °C (181.2 °F) | 304.4 W | 1,384 RPM |
Source: HWiNFO "Maximum" column
Hotspot: GPU Hot Spot Temperature
Power: Total Board Power (TBP)
Fans: GPU Fan max RPM
These results confirm that while the RX 9070 XT draws significantly more power, it maintains controlled temperatures and quieter fan behavior under sustained load.
Real-World Gaming Performance
In real games, the difference between these GPUs becomes immediately obvious. The RX 9070 XT delivers smoother traversal, stronger minimum FPS, and fewer drops during heavy scenes.
The RX 9060 XT can still run modern titles at high settings, but it reaches its limits faster — particularly in scenes with complex lighting, dense foliage, or heavy post-processing.
Put simply: the RX 9070 XT feels comfortable where the RX 9060 XT feels stretched.
Performance Summary
| Area | RX 9060 XT | RX 9070 XT |
|---|---|---|
| Synthetic Benchmarks | Good | Excellent |
| Sustained Load | Moderate | Very Strong |
| 1440p Ultra Gaming | Playable | Comfortable |
| Thermal Headroom | Limited | Generous |
Final Thoughts & Value
The RX 9060 XT is a capable GPU — but the RX 9070 XT operates on a different tier. The performance gap isn't theoretical or marginal; it's visible, repeatable, and immediately noticeable in demanding titles.
If you're targeting 1440p Ultra with consistent frame pacing, the RX 9070 XT justifies its position clearly. The RX 9060 XT still makes sense for more constrained builds, but it does so with compromises.
If performance longevity matters, the RX 9070 XT is the safer and more satisfying choice.
